Product Overview:

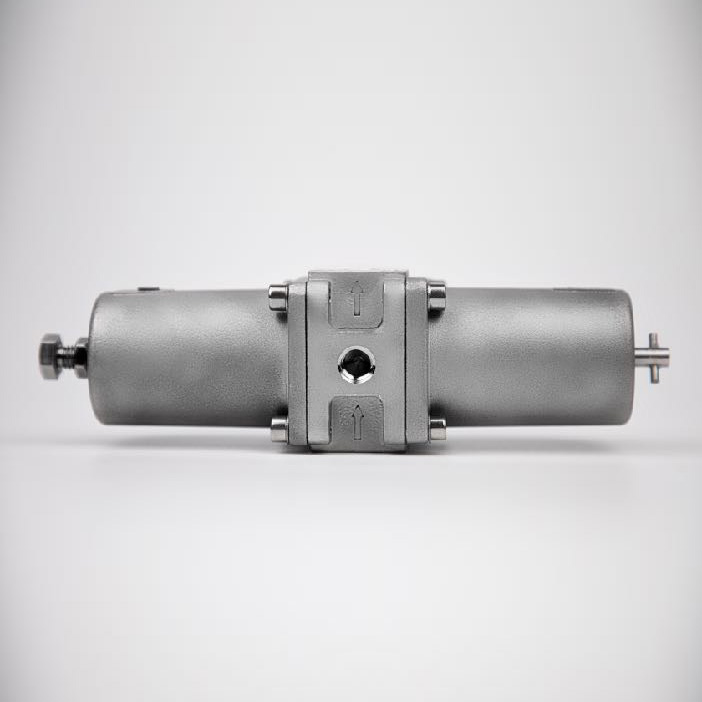

The SFR series stainless steel filter pressure reducing valve is VROT ® Customized for strict working conditions and environments
A stainless steel filter pressure reducing valve with high flow rate, corrosion resistance, and extreme temperature resistance.

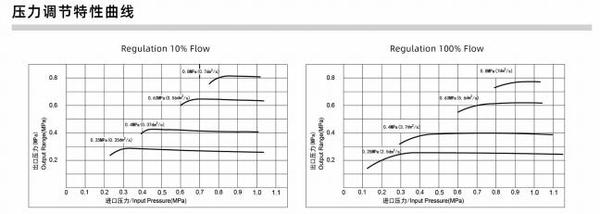

The product has stable pressure regulation performance and meets SIL3 safety standards. Unique overflow outlet for rain protection
Design to ensure the safe use of products during operation and prevent mold damage caused by water ingress
The risk of block failure.
Product Features:
Medium used: Compressed air
Maximum intake pressure: 20 bar (290 psi)
Export pressure range: 0.5-10 bar (7.25-145 psi)
Product flow rate: 50dm3/s (1/4 "| 3/8") 120dm3/s (1/2 "| 3/4")
Filter element: 5um/25 μ m/40 μ m optional
Interface size: 1/4 "| 3/8" | 1/2 "| 3/4"
Drainage method: manual
Environmental temperature:- 40- +80°C
Product Material: Body/Cup/Neck/Adjustable Bolt 316L Stainless Steel Seal: HNBR
