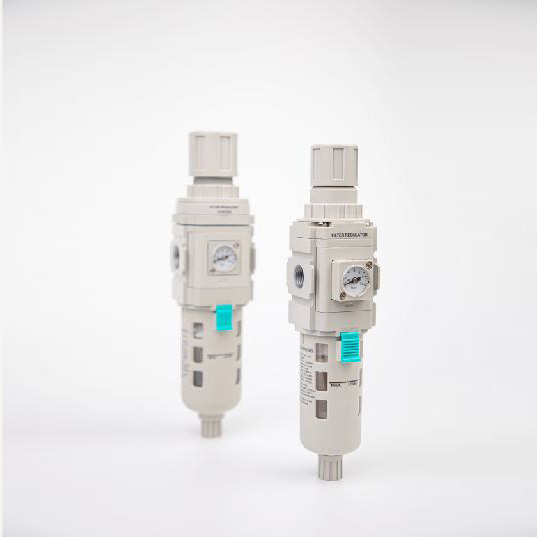

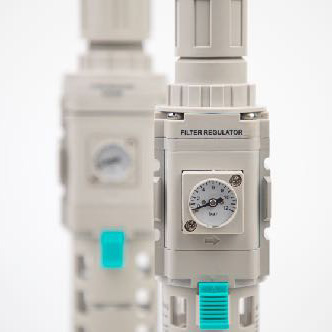

Product Overview:
The SFR series stainless steel filter pressure reducing valve is VROT ® Customized for strict working conditions and environments
A stainless steel filter pressure reducing valve with high flow rate, corrosion resistance, and extreme temperature resistance.
The product has stable pressure regulation performance and meets SIL3 safety standards. Unique overflow outlet for rain protection
Design to ensure the safe use of products during operation and prevent mold damage caused by water ingress
The risk of block failure.
Product Features:
Medium used: Compressed air
Maximum operating pressure: 10 bar (145 psi)
Export pressure range: 0.5-8.5 bar (7.25-123 psi)

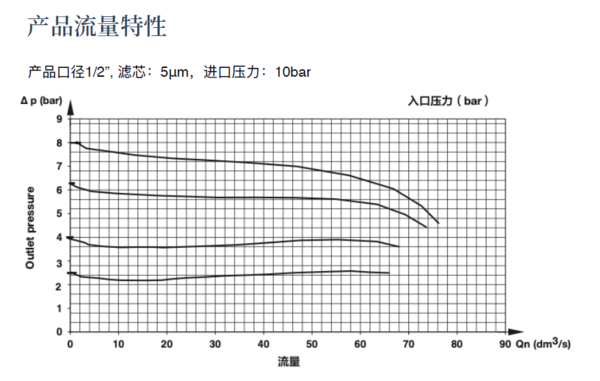

Product traffic: 20 dm3/s (1/4 "unshielded version)
35dm3/s (1/4 "standard version)
40 dm3/s (3/8”)
50 dm3/s (1/2”)
Filter cartridge: 5um/25 um/40 μ m optional
Interface size: 1/4 "| 3/8" | 1/2 "
Drainage method: manual | automatic | semi-automatic
Environmental temperature:- 5- + 60°C
Product Material: Valve Body: Die cast Aluminum
Filter cup: transparent plastic
Protective cover: Nylon
Sealing element: HNBR

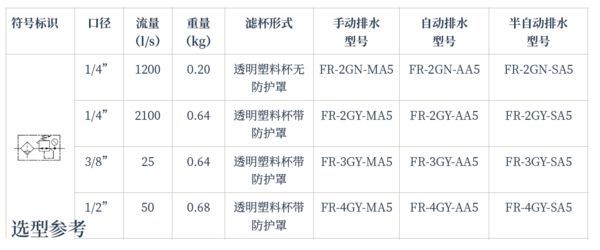

Technical parameters:
